Square Bars

• Size
• Different available

• Usage
• Industrial

• Warranty
• Yes

• Application
• Other, Reinforcement bar connection in construction, bridges, tunnels, and precast concrete structures

• Coating Type
• Phosphated, Black Oxide, or Zinc Galvanized

• Color
• Black, Silver, or as per coating

• Composition
• Low to medium carbon steel (typically C: 0.20 - 0.25%)

• Corrosion Resistant
• Yes, based on coating

• Diameter
• 12mm, 16mm, 20mm, 25mm, 32mm, 40mm (other sizes on request)

• Dimension (L*W*H)
• Varies by diameter (typical range: 40mm-160mm length, diameters from 12mm-40mm)

• Finish Type
• Threaded, smooth finish

• Grade
• IS 1786 Fe500/Fe550, ASTM A615 Grade 60 or equivalent

• Hardness
• 150-250 HB

• Heat Resistance
• Yes

• Material Composition %
• Fe: 97-98%, C: 0.20-0.25%, Mn, Si, P, S (balance)

• Material Grade
• Fe500/Fe550 or as per order

• Product Form
• Mechanical Coupler

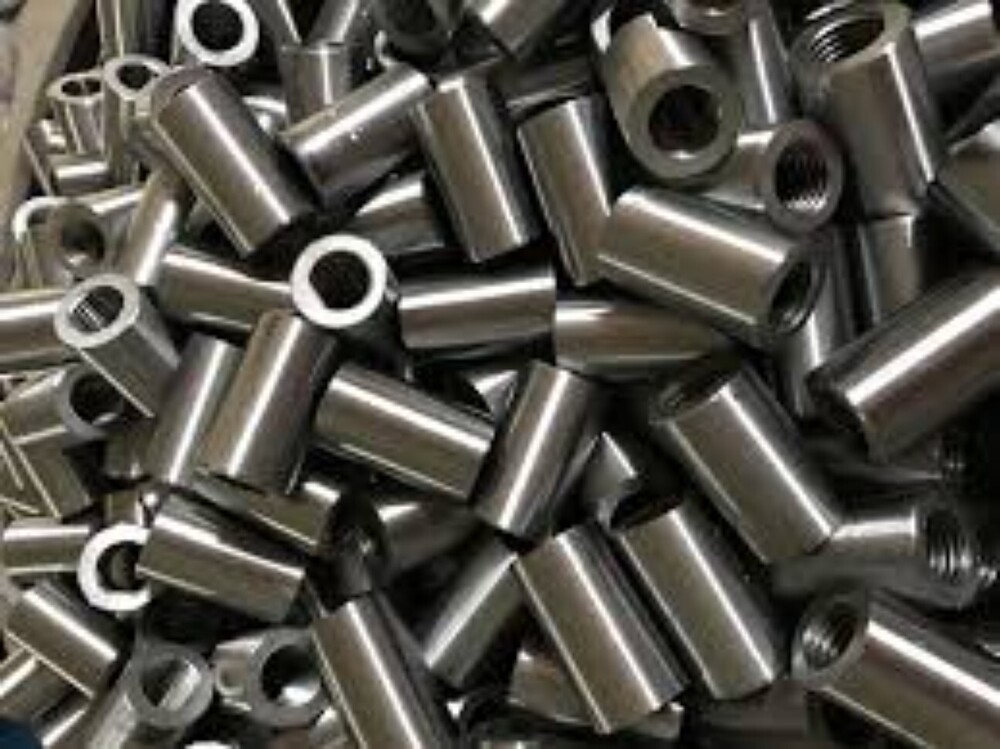

• Product Name
• Other, Rebar Coupler

• Recyclable
• Yes

• Shape
• Other, Cylindrical

• Size
• Customizable as per rebar specification

• Steel Product Type
• Other, Bar Coupler

• Steel Standard
• Other, ASTM A615, IS 1786, BS 4449, JIS G3101

• Steel Type
• Other, Carbon Steel or Alloy Steel

• Surface
• Threaded, Phosphated / Black or Galvanized finish

• Tensile Strength
• 600 MPa

• Thickness
• Dependent on diameter; typically 3-8 mm wall thickness

• Usage
• Splicing rebars, structural reinforcement joining

• Weight
• Varies by size (e.g., 0.2 kg - 2.5 kg per coupler)
